Archimedes Screw



Settle Hydro - Re-using technology from 3rd Century BC

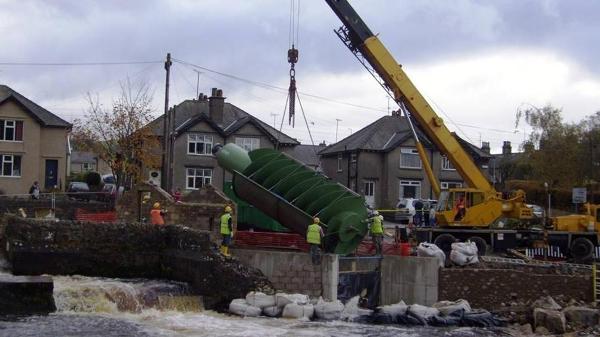

The Archimedes Screw being lowered into place in October 2009



Vital Statistics

of Settle Hydro's Archimedes Screw


Diameter 2.6m
Length 7.77m
Weight 7 tonnes
Angle of Inclination 22º
Net Head 2m
Variable Speed 7rpm - 28rpm
Nominal Power 46kW

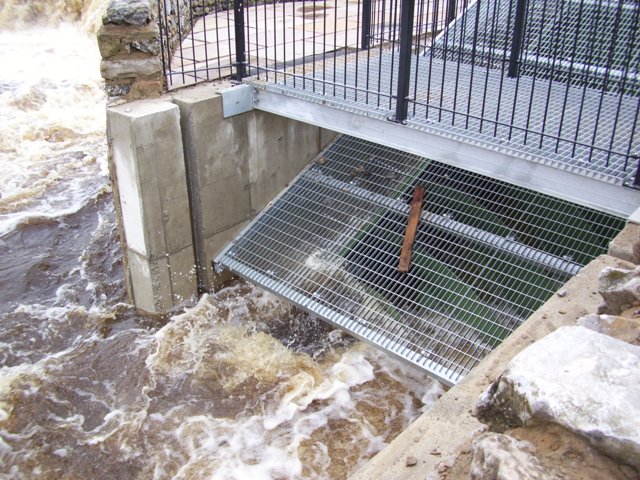

Outflow from Archimedes Screw under high river conditions
